Mitsubishi 10.4Inch Industrial Lcd Model AA104XD12 1024X768P 123PPI 1000cd/M2 20PIN 3.3V outdoor high brightness lcd panel

Nombre De La Marca:	Mitsubishi
Número De Modelo:	AA104XD12
Cuota De Producción:	10 por ciento
Precio:	negotiable
Detalles Del Embalaje:	Embalaje industrial
Condiciones De Pago:	T/T, W, Western Union, Moneygram

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

Rohs,CE,FCC

Calidad:

Nuevo original

Paquete:

Embalaje industrial original

Resolución:

1024*768pixels

Estilo:

20PIN IPS

Brillo:

1000CD/m2

Color:

16.7m

Relación de contraste:

700: 1

La vida laboral:

100 mil horas

Tipo:

- ¿ Qué?

Tamaño:

10.4inch

Tipo de lámpara:

Voltaje:

Capacidad de la fuente:

3000 piezas por semana

Descripción del producto

Mitsubishi 10.4Inch Industrial Lcd Model AA104XD12 1024X768P 123PPI 1000cd/M2 20PIN 3.3V outdoor high brightness lcd panel

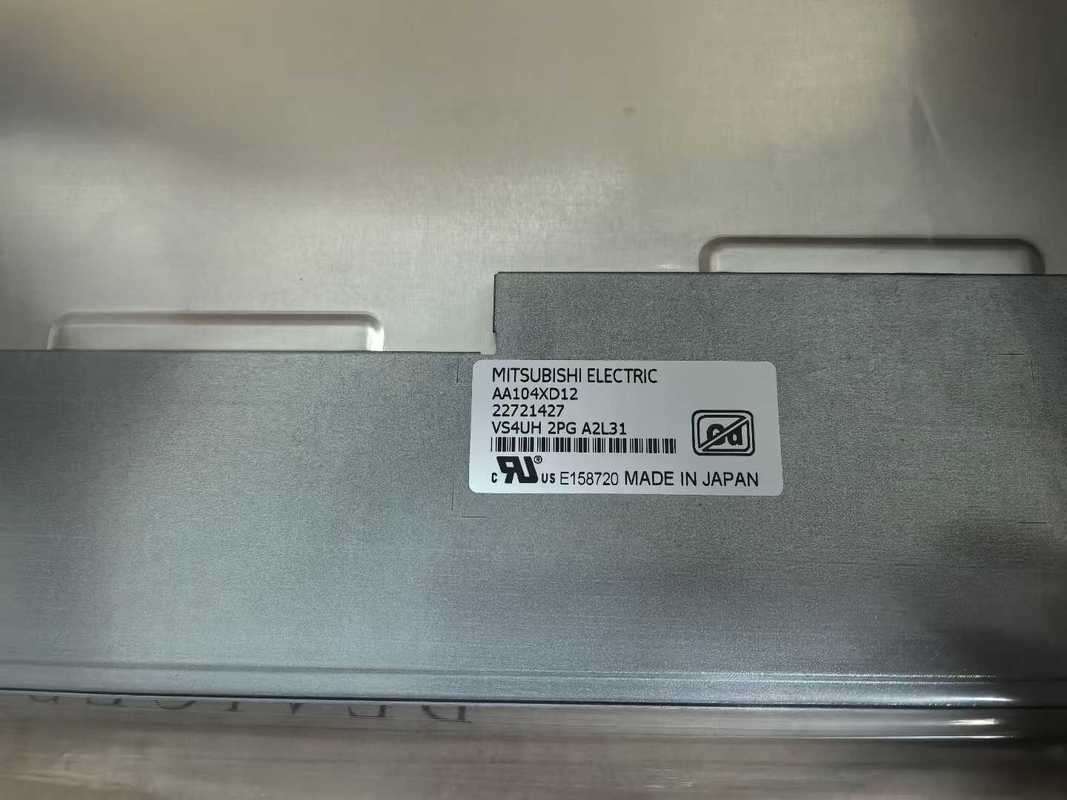

The AA104XD12 (Alias: T-55533D104J-LW-A-ABN) is a 10.4 inch diagonal a-Si TFT-LCD display panel product from Mitsubishi Electric Corporation (hereafter called Mitsubishi), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Einklcd in the following: Wide Temperature, Ultra High Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 100K hours, 180° Reverse, 6/8 bit, Matte , NCM. Based on its features, Einklcd recommend that this model be applied to Industrial, Outdoor High Brightness etc. According to the information stored in Einklcd this model mass production on Q1, 2009, Now this model is discontinued. We inputted this model's specification on Mar 26 2013 for the first time, and the latest update on Dec 3 2020. If you want to embed AA104XD12 LCM in your future product, Einklcd strongly recommend that you should contact with Mitsubishi or it's agent to learn lateast production and specification detail. The AA104XD12 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand:Mitsubishi

Model P/N:AA104XD12

Compatible Model 1 Compatible

Diagonal Size:10.4"

Panel Type: a-Si TFT-LCD, LCM

Resolution 1024(RGB)×768, XGA 123PPI Pixel

Format RGB Vertical Stripe

Active Area 210.4(W)×157.8(H) mm

Bezel Opening 215.4(W)×161.8(H) mm

Outline(mm): 230(W)×180.2(H)×11(D)

Luminance: 1000 (Typ.)(cd/m²)

Viewing Angle: 80/80/65/65 (Typ.)(CR≥10) Left / Right / Up / Down

Good View at 6 o'clock

Color Depth:262K/16.7M 40% NTSC

Mass: 520g (Typ.)

Refresh Rate: 60Hz

120Hz (60HZ Input) : Embedded MEMC Circuit

120Hz+120Hz : 120Hz Panel+120Hz Backlight

240Hz (60HZ Input) : Embedded MEMC Circuit

Treatment: Antiglare, Hard coating (3H)

Contrast Ratio:700 : 1 (Typ.) (TM)

Work Mode: TN, Normally White, Transmissive

Response:4/12 (Typ.)(Tr/Td) ms

IPS Family: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich

VA Family: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA

Backlight: 4 strings WLED , 100K hours , No Driver

Used for : Industrial Outdoor High Brightness

Touchscreen: Wihtout

Signal Type LVDS (1 ch, 6/8-bit) , 20 pins Connector

Voltage Supply:3.3V (Typ.)

Max. Ratings Storage Temp.: -30 ~ 80 °C

Operating Temp.: -30 ~ 80 °C
